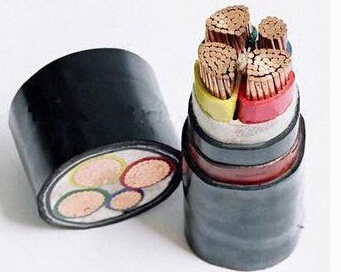

一．VV22,ZR-VV22銅芯鎧裝聚氯乙烯絕緣護套電力電纜
    用途(其中ZR-VV22電力電纜為鎧裝阻燃電纜)

導體標稱橫截面(mm2)	導體中單線根數	絕緣厚度	鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)		試驗電壓Kv/5min
						Cu	Al	Cu	Al
1×10	7	1.0	2×0.2	1.4	13.6	384	265	1.83	3.02	3.5
1×16	7	1.0	2×0.2	1.4	14.6	432.0	331.0	1.15	1.91	3.5
1×25	7	1.2	2×0.2	1.4	16.4	574.0	415.0	0.727	1.20	3.5
1×35	7	1.2	2×0.2	1.5	17.5	699.0	478.0	0.524	0.868	3.5
1×50	19	1.4	2×0.2	1.5	19.3	870.0	569.0	0.387	0.641	3.5
1×70	19	1.4	2×0.2	1.6	21.1	1118.0	685.0	0.268	0.443	3.5
1×95	19	1.6	2×0.2	1.6	23.4	1444.0	844.0	0.193	0.320	3.5
1×120	37	1.6	2×0.2	1.7	25.0	1719.0	960.0	0.153	0.253	3.5
1×150	37	1.8	2×0.2	1.7	27.0	2046.0	113.0	0.124	0.206	3.5
1×185	37	2.0	2×0.2	1.8	30.7	2672.0	1503.0	0.0991	0.164	3.5
1×240	61	2.2	2×0.2	1.9	33.3	3353.0	1816.0	0.0754	0.125	3.5
1×300	61	2.4	2×0.5	2.0	36.4	4072.0	2145.0	0.0601	0.100	3.5
1×400	61	2.6	2×0.5	2.1	40.1	5033.0	2570.0	0.0470	0.0778	3.5
1×500	61	2.8	2×0.5	2.2	44.1	6277.0	3099.0	0.0366	0.0605	3.5
1×600	91	2.8	2×0.5	2.3	48.7	7746.0	3674.0	0.0283	0.0469	3.5
1×800	91	2.8	2×0.5	2.6	51.4	9075.0	4117.0	0.0221	0.0367	3.5

導體標稱橫截面(mm2)	導體中單線根數	絕緣厚度	鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)		試驗電壓Kv/5min
						Cu	Al	Cu	Al
2×4	1	1.0	2×0.2	1.8	16.6	424	374	4.61	7.41	3.5
2×6	1	1.0	2×0.2	1.8	17.6	493	419	3.08	4.61	3.5
2×10	7	1.0	2×0.2	1.8	19.2	663	539	1.83	3.02	3.5
2×16	7	1.0	2×0.2	1.8	22.3	844	647	1.15	1.91	3.5
2×25	7	1.2	2×0.2	1.8	25.8	1154	842	0.27	1.20	3.5
2×35	7	1.2	2×0.2	1.8	28.1	1431	998	0.524	0.868	3.5
2×50	19	1.4	2×0.2	1.8	25.6	1589	1034	0.387	0.641	3.5
1×70	19	1.4	2×0.5	2.0	29.3	2243	1378	0.268	0.443	3.5
2×95	19	1.6	2×0.5	2.1	33.8	2909	1735	0.193	0.320	3.5
2×120	37	1.6	2×0.5	2.2	35.9	3475	1991	0.153	0.253	3.5
2×150	37	1.8	2×0.5	2.4	39.7	4250	2400	0.124	0.206	3.5
2×185	37	2.0	2×0.5	2.5	42.8	5010	2723	0.0991	0.164	3.5
2×240	61	2.2	2×0.5	2.5	49.5	6067	3090	0.0754	0.125	3.5
2×300	61	2.4	2×0.5	2.5	52.0	7167	3396	0.0601	0.100	3.5
2×400	61	2.4	2×0.5	2.7	58.5	8956	4156	0.0470	0.0778	3.5

導體標稱橫截面(mm2)	導體中單線根數	絕緣厚度	鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)		試驗電壓Kv/5min
						Cu	Al	Cu	Al
3×4	1	1.0	2×0.2	1.8	17.3	489	414	4.61	7.41	3.5
3×6	1	1.0	2×0.2	1.8	18.4	577	472	3.08	4.61	3.5
3×10	7	1.0	2×0.2	1.8	21.2	800	559	1.83	3.02	3.5
3×16	7	1.0	2×0.2	1.8	23.5	1050	740	1.15	1.91	3.5
3×25	7	1.2	2×0.2	1.8	27.2	1465	976	0.127	1.20	3.5
3×35	7	1.2	2×0.2	1.8	30.7	2149	1372	0.524	0.868	3.5
3×50	19	1.4	2×0.5	1.9	31.3	2453	1486	0.387	0.641	3.5
3×70	19	1.4	2×0.5	2.1	33.6	3116	1763	0.268	0.443	3.5
3×95	19	1.6	2×0.5	2.2	38.3	4053	2216	0.193	0.320	3.5
3×120	37	1.6	2×0.5	2.3	41.9	4930	2609	0.153	0.253	3.5
3×150	37	1.8	2×0.5	2.5	47.1	6075	3174	0.124	0.206	3.5
3×185	37	2.0	2×0.5	2.6	50.9	7299	3721	0.0991	0.164	3.5
3×240	61	2.2	2×0.5	2.8	57.0	9213	4590	0.0754	0.125	3.5
3×300	61	2.4	2×0.5	3.0	61.1	11185	5438	0.0601	0.100	3.5
3×400	61	2.4	2×0.5	3.2	70.5	13330	5950	0.0470	0.0778	3.5

導體標稱橫截面(mm2)	導體中單線根數	絕緣厚度	鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)		試驗電壓Kv/5min
						Cu	Al	Cu	Al
4×4	1	1.0	2×0.2	1.8	18.5	565	464	4.61	7.41	3.5
4×6	1	1.0	2×0.2	1.8	19.7	685	533	3.08	4.61	3.5
4×10	7	1.0	2×0.2	1.8	22.8	960	699	1.83	3.02	3.5
4×16	7	1.0	2×0.2	1.8	25.3	1273	851	1.15	1.91	3.5
4×25	7	1.2	2×0.2	1.8	30.5	1998	1374	0.127	1.20	3.5
4×35	7	1.2	2×0.2	1.9	33.5	2505	1602	0.524	0.868	3.5
4×50	19	1.4	2×0.5	2.0	35.2	3122	1832	0.387	0.641	3.5
4×70	19	1.4	2×0.5	2.2	38.7	4025	2220	0.268	0.443	3.5
4×95	19	1.6	2×0.5	2.4	44.7	5291	2842	0.193	0.320	3.5
4×120	37	1.6	2×0.5	2.5	49.4	6464	3370	0.153	0.253	3.5
4×150	37	1.8	2×0.5	2.6	53.7	7866	3998	0.124	0.206	3.5
4×185	37	2.0	2×0.5	2.8	58.9	9452	4772	0.0991	0.164	3.5
4×240	61	2.2	2×0.5	3.0	61.0	11916	5727	0.0754	0.125	3.5
4×300	61	2.4	2×0.5	3.0	67.0	14118	6558	0.0601	0.100	3.5
4×400	61	2.4	2×0.5	3.4	73.6	19950	9366	0.0470	0.0778	3.5

導體標稱橫截面(mm2)	導體中單線根數	絕緣厚度	鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)		試驗電壓Kv/5min
						Cu	Al	Cu	Al
5×2.5	1	0.8	2×0.2	1.8	17.3	488	409	7.41	12.1	3.5
5×4	1	1.0	2×0.2	1.8	19.7	644	518	4.61	7.41	3.5
5×6	1	1.0	2×0.2	1.8	21.3	790	605	3.08	4.61	3.5
5×10	7	1.0	2×0.2	1.8	24.6	1110	779	1.83	3.02	3.5
5×16	7	1.0	2×0.2	1.8	27.4	1485	970	1.15	1.91	3.5
4×25	7	1.2	2×0.2	1.8	33.3	2339	1525	0.127	1.20	3.5
5×35	7	1.2	2×0.5	2.0	36.6	2953	1822	0.524	0.868	3.5
5×50	19	1.4	2×0.5	2.2	41.6	3975	2392	0.387	0.641	3.5
5×70	19	1.4	2×0.5	2.3	45.5	5125	2909	0.268	0.443	3.5
5×95	19	1.6	2×0.5	2.5	52.1	6798	3790	0.193	0.320	3.5
5×120	37	1.6	2×0.5	2.6	57.3	8217	4418	0.153	0.253	3.5
5×150	37	1.8	2×0.5	2.8	63.1	10030	5280	0.124	0.206	3.5
5×185	37	2.0	2×0.5	3.0	69.9	12275	6418	0.0991	0.164	3.5
5×240	61	2.2	2×0.5	3.2	77.1	15077	7343	0.0754	0.125	3.5
5×300	61	2.4	2×0.5	3.2	86.5	18214	8764	0.0601	0.100	3.5
5×400	61	2.4	2×0.5	3.5	92.2	22864	10264	0.0470	0.0778	3.5

導體標稱橫截面(mm2)	導體中單線根數		絕緣厚度		鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)				試驗電壓Kv/5min
	相線	地線						Cu	Al	Cu		Al
3×4+1×2.5	1	1	1.0	0.8	2×0.2	1.8	17.9	538.0	446.0	4.61	7.41	7.41	12.1	3.5
3×6+1×4	1	1	1.0	1.0	2×0.2	1.8	19.5	657.0	524.0	3.08	4.61	4.61	7.41	3.5
3×10+1×6	7	1	1.0	1.0	2×0.2	1.8	22.1	894.0	619.0	1.83	3.08	3.02	4.61	3.5
3×16+1×10	7	7	1.0	1.0	2×0.2	1.8	24.7	1194.0	804.0	1.15	1.83	1.91	3.02	3.5
3×25+1×16	7	7	1.2	1.0	2×0.2	1.8	28.5	1668.0	1072.0	0.727	1.15	1.20	1.91	3.5
3×35+1×16	7	7	1.2	1.0	2×0.2	1.8	31.7	2243.0	1458.0	0.524	1.15	0.868	1.91	3.5
3×50+1×25	19	7	1.4	1.2	2×0.5	2.0	35.0	2852.0	1723.0	0.387	0.727	0.641	1.20	3.5
3×70+1×35	19	7	1.4	1.2	2×0.5	2.1	38.5	3657.0	2077.0	0.268	0.524	0.443	0.868	3.5
3×95+1×50	19	19	1.6	1.4	2×0.5	2.3	44.3	4796.0	2636.0	0.193	0.387	0.320	0.641	3.5
3×120+1×70	37	19	1.6	1.4	2×0.5	2.4	49.0	5912.0	3139.0	0.153	0.268	0.253	0.443	3.5
3×150+1×70	37	19	1.8	1.4	2×0.5	2.5	53.5	7025.0	3673.0	0.124	0.268	0.206	0.443	3.5
3×185+1×95	37	19	2.0	1.6	2×0.5	2.7	58.9	8598.0	4408.0	0.0991	0.1930	0.164	0.320	3.5
3×240+1×120	61	37	2.2	1.6	2×0.5	2.9	60.6	10631.0	5216.0	0.0754	0.1530	0.125	0.253	3.5
3×300+1×150	61	37	2.4	1.8	2×0.5	3.1	65.6	12913.0	6145.0	0.0601	0.1240	0.100	0.206	3.5
3×400+1×240	61	61	2.4	1.8	2×0.5	3.3	72.8	15410.0	7812.0	0.0470	0.0754	0.0778	0.125	3.5

導體標稱橫截面(mm2)	導體中單線根數		絕緣厚度		鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)				試驗電壓Kv/5min
	相線	地線						Cu	Al	Cu		Al
3×4+2×2.5	1	1	1.0	0.8	2×0.2	1.8	18.8	580	491	4.61	7.41	7.41	12.1	3.5
3×6+2×4	1	1	1.0	1.0	2×0.2	1.8	20.7	728	570	3.08	4.61	4.61	7.41	3.5
3×10+2×6	7	1	1.0	1.0	2×0.2	1.8	23.3	973	702	1.83	3.08	3.02	4.61	3.5
3×16+2×10	7	7	1.0	1.0	2×0.2	1.8	26.3	1323	853	1.15	1.83	1.91	3.02	3.5
3×25+2×16	7	7	1.2	1.0	2×0.2	1.8	31.5	2053	1287	0.727	1.15	1.20	1.91	3.5
3×35+2×16	7	7	1.2	1.0	2×0.2	1.9	33.6	2406	1402	0.524	1.15	0.868	1.91	3.5
3×50+2×25	19	7	1.4	1.2	2×0.5	2.1	38.4	3371	2080	0.387	0.727	0.641	1.20	3.5
3×70+2×35	19	7	1.4	1.2	2×0.5	2.2	42.6	4350	2542	0.268	0.524	0.443	0.868	3.5
3×95+2×50	19	19	1.6	1.4	2×0.5	2.4	48.5	5736	2384	0.193	0.387	0.320	0.641	3.5
3×120+2×70	37	19	1.6	1.4	2×0.5	2.5	53.4	7126	3897	0.153	0.268	0.253	0.443	3.5
3×150+2×70	37	19	1.8	1.4	2×0.5	2.6	57.2	8249	4438	0.124	0.268	0.206	0.443	3.5
3×185+2×95	37	19	2.0	1.6	2×0.5	2.8	63.9	10254	5441	0.0991	0.1930	0.164	0.320	3.5
3×240+2×120	61	37	2.2	1.6	2×0.5	3.0	71.4	12888	6689	0.0754	0.1530	0.125	0.253	3.5
3×300+2×150	61	37	2.4	1.6	2×0.5	3.2	79.3	15483	7948	0.0601	0.1240	0.100	0.206	3.5
3×400+2×240	61	61	2.4	1.8	2×0.5	3.4	86.7	19950	9366	0.0470	0.0754	0.0778	0.125	3.5

導體標稱橫截面(mm2)	導體中單線根數		絕緣厚度		鋼帶厚度	外護套厚度	電纜近似外徑	電纜近似重量(kg/km)		20℃導體電阻≤( Ω/km)				試驗電壓Kv/5min
	相線	地線						Cu	Al	Cu		Al
4×4+1×2.5	1	1	1.0	0.8	2×0.2	1.8	19.2	605	498	4.61	7.41	7.41	12.1	3.5
4×6+1×4	1	1	1.0	1.0	2×0.2	1.8	20.8	765	589	3.08	4.61	4.61	7.41	3.5
4×10+1×6	7	1	1.0	1.0	2×0.2	1.8	23.9	152	756	1.83	3.08	3.02	4.61	3.5
4×16+1×10	7	7	1.0	1.0	2×0.2	1.8	26.9	1482	852	1.15	1.83	1.91	3.02	3.5
4×25+1×16	7	7	1.2	1.0	2×0.2	1.8	32.4	2312	1477	0.727	1.15	1.20	1.91	3.5
4×35+1×16	7	7	1.2	1.0	2×0.2	1.9	35.1	2756	1731	0.524	1.15	0.868	1.91	3.5
4×50+1×25	19	7	1.4	1.2	2×0.5	2.1	39.7	3680	1827	0.387	0.727	0.641	1.20	3.5
4×70+1×35	19	7	1.4	1.2	2×0.5	2.3	44.0	4768	2734	0.268	0.524	0.443	0.868	3.5
4×95+1×50	19	19	1.6	1.4	2×0.5	2.4	50.2	6267	3491	0.193	0.387	0.320	0.641	3.5
4×120+1×70	37	19	1.6	1.4	2×0.5	2.6	55.1	7698	4145	0.153	0.268	0.253	0.443	3.5
4×150+1×70	37	19	1.8	1.4	2×0.5	2.7	59.9	6216	4882	0.124	0.268	0.206	0.443	3.5
4×185+1×95	37	19	2.0	1.6	2×0.5	2.9	66.5	11293	5899	0.0991	0.1930	0.164	0.320	3.5
4×240+1×120	61	37	2.2	1.6	2×0.5	3.1	74.3	14371	7395	0.0754	0.1530	0.125	0.253	3.5
4×300+1×150	61	37	2.4	1.6	2×0.5	3.3	80.1	17449	8891	0.0601	0.1240	0.100	0.206	3.5
4×400+1×240	61	61	2.4	1.6	2×0.5	3.6	88.2	21578	9986	0.0470	0.0754	0.0778	0.125	3.5

導電線芯短路時允許***高溫度	***高允許的短路電流
160℃	I=94S√tA
